ZH-1000G easy operation cardboard folder glue

FOB Reference Price:Get Latest Price
$12,700.00 - $13,200.00 / Set | 1 Set/Sets (Min. Order)
Power:
3.7KW
Model Number:
ZH-1000G-1
Report Suspicious Activity
Overview
Quick Details
Application:
Food, Medical
Packaging Material:
Metal
Type:
Gluing Machine
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
ZHANTIAN
Voltage:
AC220V
Weight:
2000kg
Automatic Grade:
Automatic
Certification:
CE Certificate
Packaging Type:
Case, Metal
Driven Type:
Electric
Dimension(L*W*H):
8500*900*1300mm
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
ZH-1000G easy operation cardboard folder glue
Box forming:
either side folds; both sides fold; bottom fold
Speed:
0~220m/min adjustable
paper board:
210~700g/square meter
Feeding way:
Continuously Feeding
Folding way:
1,2 & 4 fold 180 degree; 3 folds 135 degree
Glue type:
Normal Cold Glue
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
The machine will be packed in Wood box with iron frame. The size is 2700*850*1250mm.
Port
NINGBO; SHANGHAI
Product Description

WHY CHOOSE US?!

1. EXPERIENCED

2. TRUSTWORTHY

3. CERTIFICATED PRODUCTS

4. SINCERE SERVICE

5. PROFESSIONAL TEAM FOR RESEARCH AND DEVELOPMENT

6. WORRILESS A.S.S. (AFTER SALES SERVICE)

7. READY FOR LEAGAL AND FORMAL SALES CONTRACT

8. DELIVERY TIME GUARANTEE

9. SHORT DELIVERY TIME, MANY MODEL IN STOCK

10. VERY WELCOME FOR CUSTOMER'S TO VISIT US FOR INSPECTING



Characterstics

1
Line speed
0-220m/min continuous adjustment.
2
Usage paper
210-700g/m² Paperboard.
3
The form of pasting box
Either side folds, the both sides pre-fold and either side glue,bottom glue.
4
Paperboard feeding
Automatic feeding
5
Way of folding
One、two and four fold 180°, third fold 135°
6
Binder
Dissolve the type.
7
Speed
6000c/min
8
Electric
Single-phase AC220V 3.7KW
9
Weight
2000kg
10
Dimension
8500*900*1300(mm)
11
The counting range
0-999999(full-automatic)

Technical Datum

Model
Box Type
A Max
A Min
B Max
B Min
C Max
C Min
D Max
E Min
ZH-800G
Straight Line Box(I)
560
110
500
65
270
50
7
6
Pre-folfing Box(II)
560
160
500
65
270
75
10
6
Lock Bottom Box(III)
560
160
500
65
270
80
40
6
ZH-900G
Straight Line Box(I)
660
110
500
65
320
50
7
6
Pre-folfing Box(II)
660
160
500
65
320
75
10
6
Lock Bottom Box(III)
660
160
500
65
320
80
50
6
ZH-1000G
Straight Line Box(I)
760
130
600
80
370
60
10
8
Pre-folfing Box(II)
760
180
600
80
370
90
15
8
Lock Bottom Box(III)
760
180
600
80
370
90
60
8

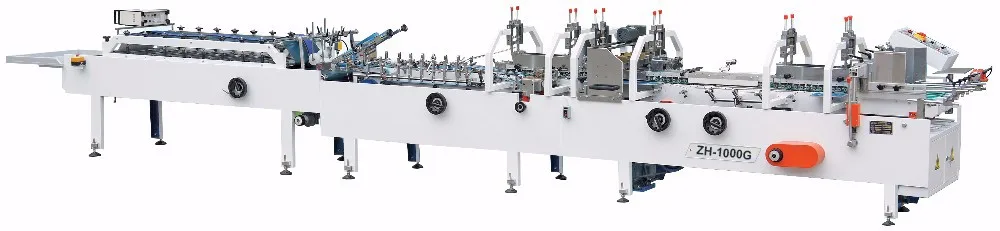

  ZH-800G/900G/1000G is the most competitive multi-functional folder gluer mahine designed by our company independently.

  It can fold and glue many simple and complicatedd carton boxes.Its ease of use,attractive pricing and broad scope of the application of the folder gluer make a new leap in folder gluer machine field.It made indelible contributions to the field.It combines a variety of folder gluer characteristics.It changes many disadvantages of crash lock bottom folder gluer machines,such as complicated structure,difficult operating and high cost.It is convenient for the current packaging and printing industry-competitive business variety, yhe less, the delivery of the tight schedule.It's ideal packaging printing industry equipmet.

Detailed Images

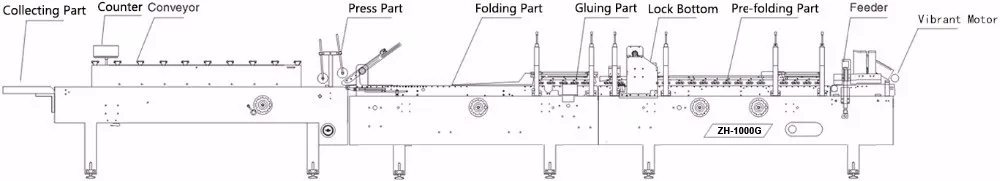

Machine Part

Name: Feeder Part

Brand: ZHANTIAN

Original: CHINA

 Feeder part is the first part of the machine ZH-1000G.Its fuction is feeding the paper to lock bottom part continuously and smoothly.And the speed is adjustable.

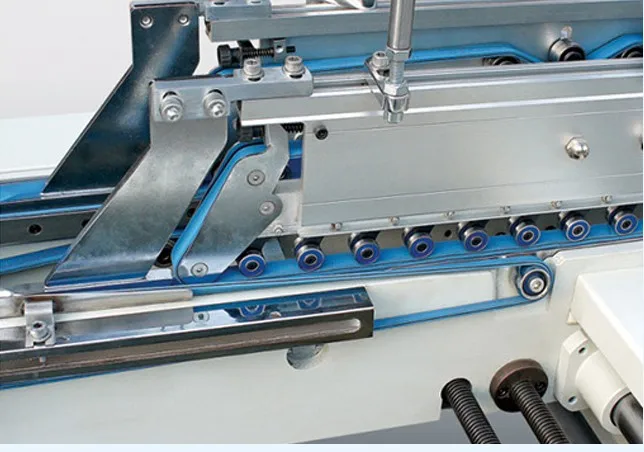

Machine Part

 Name: Lock Bottom part

 Brand: ZHANTIAN

 Original: CHINA

 Lock bottom part is the second part of machine ZH-1000G.Its function is folding the bottom part of the box and gluing it.

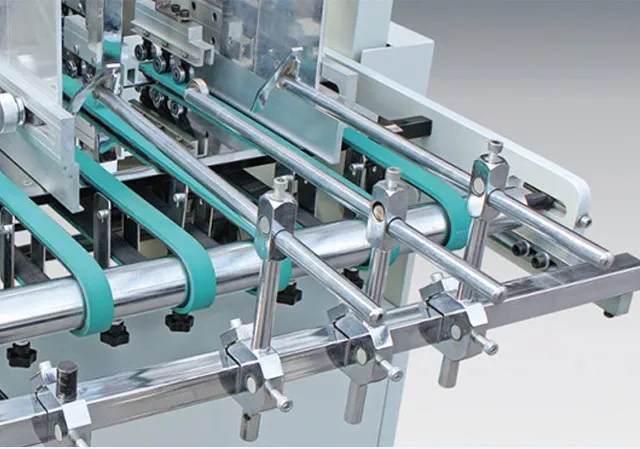

Machine Part

Name: Folding Part

Brand: ZHANTIAN

Original: CHINA

Folding part is the third of the machine ZH-1000G.Its function is folding the 2nd and 4th.

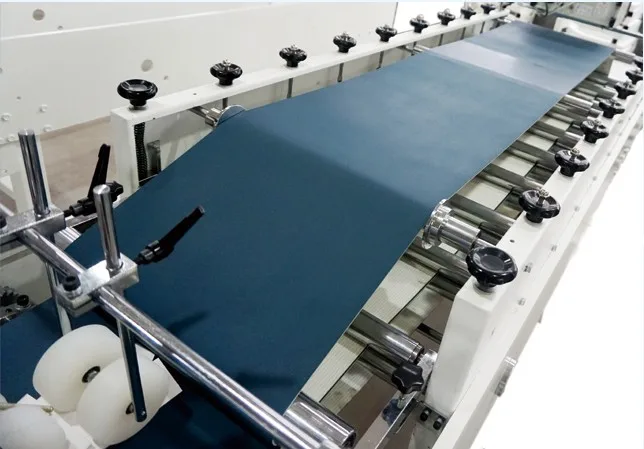

Machine Part

Name: Conveyor Part

Brand: ZHANTIAN

Original: CHINA

The conveyor part is the last part of the machine ZH-1000G.Its function is conveying the box to the collecting part where workers can collect the box easily.


Application

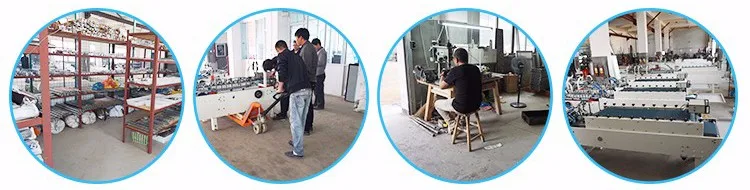

Our Company

  Wenzhou Zhantian Packing Machinery Co.,Ltd. located in Shanghui Industrial District, is adjacency to High Speed Railway station. Our company has international and advanced production equipment and plentiful technical workers.

  Based on scientifical management system, the cooperation provides high quality sales, checkout,debugging and after market. We pursue the satisfaction of customers.The main products are automatic folder gluer, automatic pre-fold folder gluer and full-automatic folder gluer with crash lock bottom and so on.

  The products are widely used for machine boxes, wine boxes, popcorn boxes, etc. The concept of the company is “being virtuous and polite, high quality with best service”, to which all employees stick. We are trying our best to be the powerful strenghth of packing business.
