ZH-1000 easy to set up folder gluer manufacturers

FOB Reference Price:Get Latest Price
$7,500.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
2.2KW
Model Number:
ZH-1000-1
Report Suspicious Activity
Overview
Quick Details
Application:
Food, Medical, medicine; comestics box
Packaging Material:
Metal
Type:
Gluing Machine
Condition:
New
Packaging Type:
Case, Metal
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
AC220V
Place of Origin:
Zhejiang, China
Brand Name:
ZHANTIAN
Dimension(L*W*H):
5800*1000*1300mm
Weight:
1500kg
Certification:
CE Certificate
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
ZH-1000 easy to set up folder gluer manufacturers
Box forming:
either side folds; both sides fold; bottom fold
Speed:
0~220m/min adjustable
paper board:
210~700g/square meter
Feeding way:
Continuously Feeding
Folding way:
1,2 & 4 fold 180 degree; 3 folds 135 degree
Glue type:
Normal Cold Glue
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
2 packages. Size is listed as follow: 2700*1050*1150mm and 2620*1050*1050mm. They are packed with iron frame. It's allowed to be stacked up.
Port
NINGBO; SHANGHAI
Product Description

WHY CHOOSE US ?!

Characterstics

1
Line speed
0-220m/min continuous adjustment
2
Usage paper
200-700g/m²  Paperboard.
3
Box forming
Either sides folds,the both sides prefold and either side glue
4
Paper feeding
Automatic feeding
5
Binder
Dissolve the type
6
Electric
Single-phase AC220V 2.2KW
7
Weight
1800kg
8
Dimension
5800*900*1300(mm)
9
The counting range
0-999999(full-automatic)

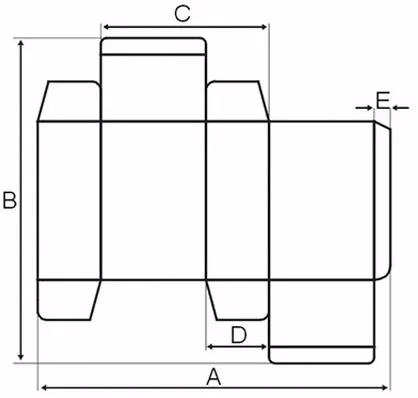

Technical Datum

Model
A Max
A Min
B Max
B Min
C Max
C Min
Weight(T)
Outer Dimension
ZH-1000
760
130
600
80
380
60
2.3
5800*1050*1300

Product Introduction

  Model ZH-1000 is the hot sale of the company.

  The users praise its stability,versatility and flexibility.It can paste many kinds of boxes.

  For small ones,it can make 40,000 to 50,000 pcs.per hour.It's ideal equipment in printing industry.

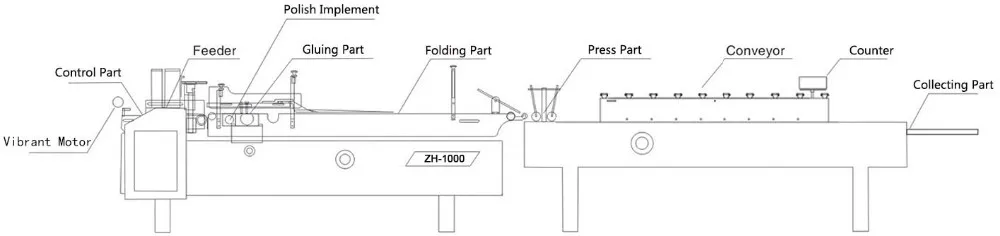

Detailed Images

Machine Part

Name: Feeder Part

Brand: ZHANTIAN

Original: CHINA

 Feeder part is the first part of the machine ZH-1000.Its fuction is feeding the paper to lock bottom part continuously and smoothly.And the speed and is adjustable.

Machine Part

 Name: Straight Line Gluing Part

 Brand: ZHANTIAN

 Original: CHINA

 Straight line gluing part is the part behind the feeder part. Its function is gluing the paper.



Machine Part

Name: Folding Part

Brand: ZHANTIAN

Original: CHINA

Folding part is the third of the machine ZH-1000.Its function is folding the 2nd and 4th.


Machine Part

Name: Conveyor Part

Brand: ZHANTIAN

Original: CHINA

The conveyor part is the last part of the machine ZH-1000.Its function is conveying the box to the collecting part where workers can collect the box easily.


Application
Our Company

  Wenzhou Zhantian Packing Machinery Co.,Ltd. located in Shanghui Industrial District, is adjacency to High Speed Railway station. Our company has international and advanced production equipment and plentiful technical workers.

  Based on scientifical management system, the cooperation provides high quality sales, checkout,debugging and after market. We pursue the satisfaction of customers.The main products are automatic folder gluer, automatic pre-fold folder gluer and full-automatic folder gluer with crash lock bottom and so on.

  The products are widely used for machine boxes, wine boxes, popcorn boxes, etc. The concept of the company is “being virtuous and polite, high quality with best service”, to which all employees stick. We are trying our best to be the powerful strenghth of packing business.
