ZH-780 Automatic high speed folder gluer/glue machine/automatic gluing machine

FOB Reference Price:Get Latest Price
$13,500.00 - $14,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
2.2KW
Model Number:
ZH-780-1
Report Suspicious Activity
Overview
Quick Details
Application:
Food, Medical
Packaging Material:
Metal
Type:
Gluing Machine
Condition:
New
Packaging Type:
Case, Metal
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
AC220V
Place of Origin:
Zhejiang, China
Brand Name:
ZHANTIAN
Dimension(L*W*H):
6400*1000*1400mm
Weight:
1500kg
Certification:
CE Certificate
After-sales Service Provided:
Engineers available to service machinery overseas
Box forming:
either side folds; both sides fold; bottom fold
Speed:
0~220m/min adjustable
paper board:
210~600g/square meter
Feeding way:
Continuously Feeding
Folding way:
1,2 & 4 fold 180 degree; 3 folds 135 degree
Glue type:
Normal Cold Glue
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
The machine will be packed in h iron frame. The machine includes 2 parts. The size is 3300*1150*1280mm and 2700*800*1000mm..
Port
NINGBO; SHANGHAI
Product Description

Automatic folder gluer/glue machine/automatic gluing machine

Characterstics

1
Usage paper
180-800g/m2 Paperboard,N/F/E flute microwave corrugated cardboard
2
Box forming
Standard box, double sides box(optional)
3
Max、line speed
300m/min
4
Required power
2.2kw、220v
5
Weight
1500kg
6
Dimension
6400*1000*1400(mm)

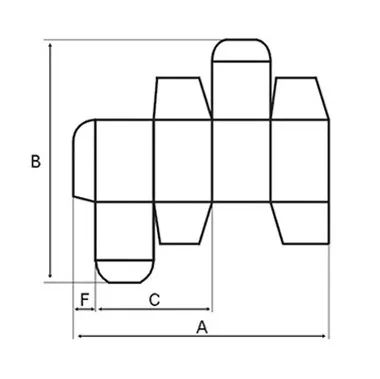

Technical Datum

Model
Box Type
A Max
A Min
B Max
B Min
C Max
C Min
F Max
F Min
ZH-580
Straight Line Box
580
100
500
60
280
45
30
8
ZH-780
Straight Line Box
780
150
500
70
380
70
30
8
ZH-980
Straight Line Box
980
170
600
80
480
80
30
10

Product Introduction

1.Machine palte uses laser cutting,punching and flanging;the equipment structure is more reasonable; the assembly is more accurate; the operation is more stable.
2.Power transmission use synchronous belt; high speed and low noise; more safety.
3.PLC computer control; convenient operation of variable frequency and speed.
4.The machine can paste carton boxes and corrugated box(such as E/F/N)
5.The maximum speed is 300m/min;the standard box is 50000 pcs.per hour

Detailed Images

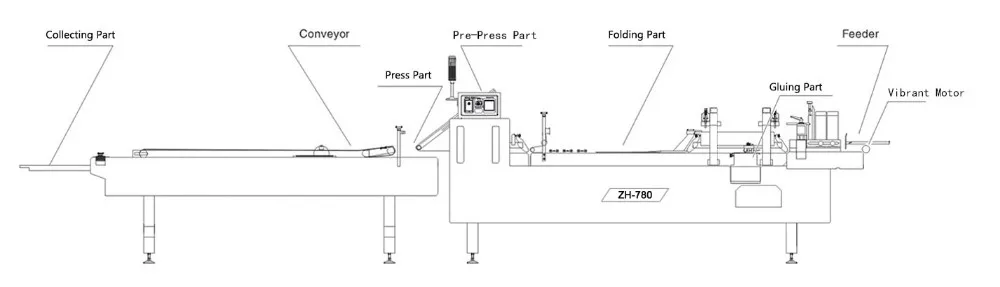

Machine Part

Name: Feeder Part

Brand: ZHANTIAN

Original: CHINA

 Feeder part is the first part of the machine ZH-780.Its fuction is feeding the paper to lock bottom part continuously and smoothly.And the speed and is adjustable.

Machine Part

 Name: Straight Line Gluing Part

 Brand: ZHANTIAN

 Original: CHINA

 Straight line gluing part is the part behind the feeder part. Its function is gluing the paper.



Machine Part

Name: Folding Part

Brand: ZHANTIAN

Original: CHINA

Folding part is the third of the machine ZH-780.Its function is folding the 2nd and 4th.


Machine Part

Name: Conveyor Part

Brand: ZHANTIAN

Original: CHINA

The conveyor part is the last part of the machine ZH-780.Its function is conveying the box to the collecting part where workers can collect the box easily.

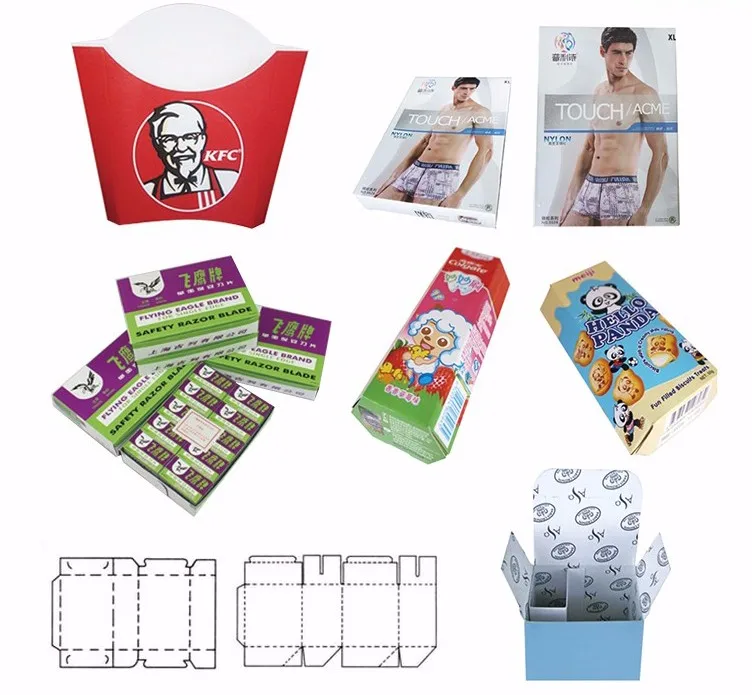

Application
